iGo22-RT7

The iGo22-RT7 is a 22” Intel® Atom™-based industrial multitouch panel PC.

It adopts a modern, the model is equipped with a 22" LCD as well as Intel® Atom™ dual core processor N2800 1.86GHz. For wireless network connection, the iGo22-RT7 offers a mini card slot. By just plugging in the mini card WLAN card, customers can have instant access to wireless environments.

Features



Intel Atom Dual-Core fanless N2800 1.86GHz
Intel® NM10 Express Chipset
22” TFT Resistive Touch LCD Screen
10 x USB Ports, 1 x VGA, 1 x HDMI , 2 x SATA ports
1 x 10/100/1000 Gigabit LAN
Intel 802.11 a/g/n Dual-Band Wifi + Bluetooth 4.0
OSD on the side and 2 x USB Ports

Display Specification

Display Type

Brightness (cd/m2)

Aspect ratio

Back light

Colors

Viewing Angle

Contrast

Resolution

Housing

22" LCD

300 nits

16:9

LED

16.7M

178 / 178

5000:1

1920 x 1080

Metal Casing

System Specification

CPU

Chipset

System Memory

Storage

Speaker

LAN

Wireless

I/O











Power Supply



Expansion





Dimensions (WxDxH)

Operating Temperature

Mounting

Intel Atom Dual-Core fanless N2800 1.86GHz

Intel NM 10 Express Chipset

4GB DDR3 SODIMM

2.5" SATA 320GB HDD

2x 5W per channel

1x 10/100/1000 Gigabit

Intel 802.11 a/g/n Dual-Band Wifi + Bluetooth 4.0

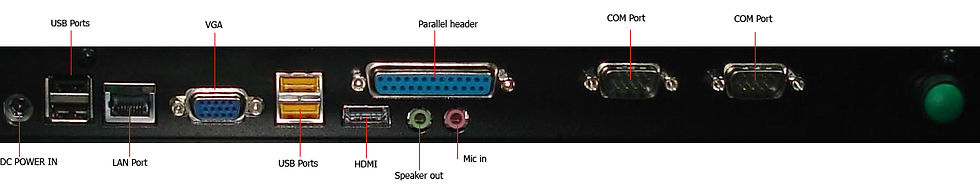

2x USB 3.0, 4 x USB 2.0 ports (4 internal)
1x VGA, 2 x COM Ports
1x HDMI ports
2x SATA ports
1x Parallel header
1x Audio port

DC12V single power input; Wide range DC from
8VDC ~ 32VDC input (optional)

1 x PCI Express slot;
1 x PCI Express* Mini Card (Half-size);
1 x PCI Express* Mini Card (Full/Half-size adjustable) support mSATA

547 x 58 x 338 mm (21.5” x 2.3" x 13.3”)

0°C ~ 50°C(32°F ~ 122°F)

75 x 75 mm & 100 x 100 mm Panel mount with panel mount bracket



Slim DVD-RW Drive

10°~ 90° Countertop Table Stand

SSD

Optical

Tilting Angle

Storage

Optional
